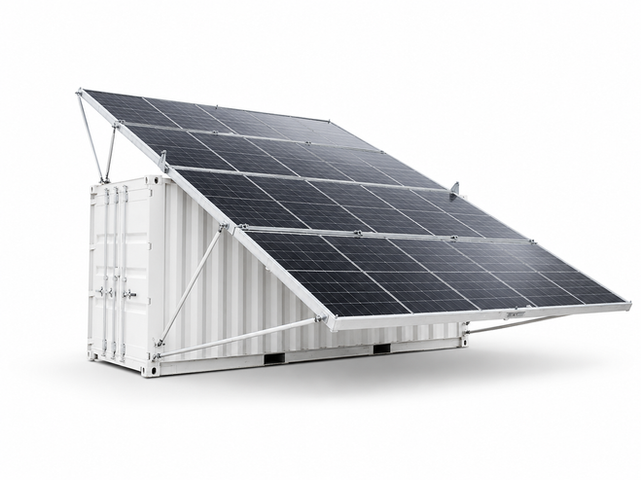

FPS20-60
Hybrid Power System
High-capacity containerised hybrid power for industrial, remote and demanding temporary site applications.
OUTPUT
117kVA
SOLAR
10kW
BATTERY
Up to 50kWh
FORMAT
Containerised
_.png){kind=logo}
COMPLIANCE
AS/NZS Compliant
Overview
The FPS20-60 is designed for larger loads and demanding site conditions where portable systems are insufficient.
It combines solar generation, battery storage and backup generation in a containerised format to support reliable temporary or off-grid power across industrial, infrastructure and remote applications
Ideal for
-
Industrial sites
-
Remote operations
-
Larger temporary power requirements
-
Infrastructure projects
-
High-demand site compounds
-
Three-phase applications
Technical Specifications
Format
Containerised Hybrid System
Continuous Output
117 kVA
System Peak Output
137.5 kVA
Solar Capacity
10 kW
Expandable Solar
Yes
Backup Generator Output
56.5 kVA
Battery Capacity
Up to 50 kWh
Fuel Capacity
200L
Weight
7.00 tonne
Dimensions Deployed (H x W x L)
4.80m x 8.90m x 6.10m
Compliance & Standards
AS/NZS 3000:2018
Wiring Rules
AS/NZS 5033:2021
Installation and safety requirements for photovoltaic (PV) arrays
AS/NZS 4509.1:2009
Stand-alone power systems – Safety & Installation
AS/NZS 4509.2:2010
Stand-alone power systems – System Design
AS/NZS 1170.2:2021
Structural design actions – Wind actions
AS/NZS 1768:2021
Lightning protection
AS/NZS 3008.1.1:2017
Selection of cables
AS/NZS 5139:2019
Safety of battery systems for use with power conversion equipment
