Overview

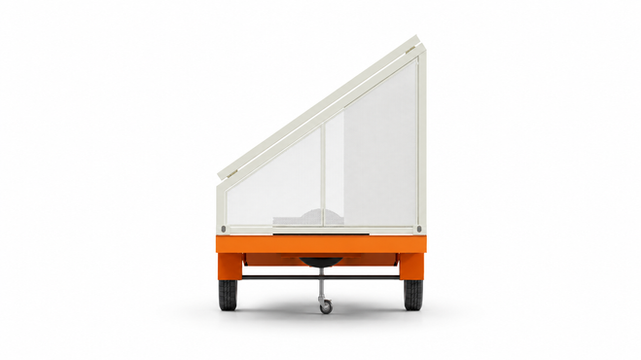

The FPS Mini-15 is designed for smaller worksites and temporary power applications where a full containerised system is not required.
Its trailer-mounted format makes it easy to transport and deploy, while the integrated solar, battery and backup generator system provides reliable power for site amenities, tools, lighting, communications and remote equipment.
Ideal for
-
Small temporary worksites
-
Remote equipment and monitoring
-
Site amenities and lunch rooms
-
Lighting and communications
-
Low-load off-grid applications
-
Short-to-medium-term hire projects
Technical Specifications
Format
Trailer Mounted
Continuous Output
14.3 kVA
System Peak Output
24.3 kVA
Solar Capacity
3 kW
Expandable Solar
Yes
Backup Generator Output
9.3 kVA
Battery Capacity
Up to 40 kWh
Fuel Capacity
100 L
Weight
2.1 tonne
Dimensions Deployed (H x W x L)
3.19m x 2.50m x 6.10m
Compliance & Standards
AS/NZS 3000:2018
Wiring Rules
AS/NZS 5033:2021
Installation and safety requirements for photovoltaic (PV) arrays
AS/NZS 4509.1:2009
Stand-alone power systems – Safety & Installation
AS/NZS 4509.2:2010
Stand-alone power systems – System Design
AS/NZS 1170.2:2021
Structural design actions – Wind actions
AS/NZS 1768:2021
Lightning protection
AS/NZS 3008.1.1:2017
Selection of cables
AS/NZS 5139:2019
Safety of battery systems for use with power conversion equipment
Documents & Downloads
Technical Specification Sheet
Product Brochure
Dimension Drawings
Hire / Purchase Information
Compliance Statement & Standards
Certifications & Awards
